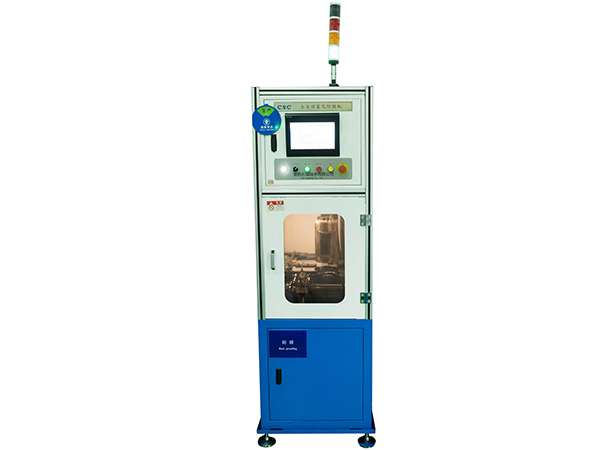

Cup type atomization rust prevention machine

Atomization Rust Prevention Machine - Introduction

Equipment purpose

Atomization rust prevention treatment for ball bearings

The device includes functions

a) Bearing positioning

b) Cup atomization chamber atomization

technical indicators

Efficiency: ≯ 4 seconds/set

After rust prevention, there is a uniform oil film on the surface of the product

Spray station: cup type single spray, needle loading machine. When spray, the bearing is in an independent sealed atomization chamber, and spray is applied up and down at the same time;

There is an oil mist recovery device located below the atomization chamber. After the atomization is completed and the oil mist recovery is finished, the sealed atomization chamber is opened;

Anti rust oil atomization: using a high atomization nozzle to atomize anti rust oil, suitable for high viscosity anti rust oil;

Atomization amount: The atomization amount and atomization time can be adjusted according to product requirements;

Rust prevention oil recovery: An oil return device is installed below the atomization chamber to recover rust prevention oil and return it to the oil tank;

Oil mist recovery: equipped with oil mist separation and filtration device, no need to install oil fume exhaust pipeline;
