Spray cleaning machine

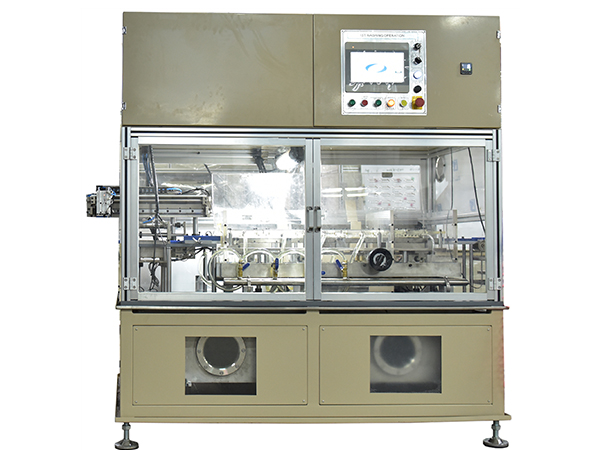

Channel type spray cleaning machine - Introduction

Equipment purpose

Used for cleaning semi-finished bearings after riveting the ball bearing retaining frame

The device includes functions

a) Flat demagnetization

b) Channel type high-pressure spray

c) Channel type high-pressure drying

technical indicators

Cleaning efficiency: ≯ 7 seconds/set

Flat demagnetization: residual magnetization ≤ 0.3mT

The pollution content of a single set of bearings is less than 1.5mg/set

Blow drying: using filtered compressed air to blow dry

The cleaning oil filtration system adopts a stainless steel five core filter, a cleaning detection machine, and two-stage filtration (coarse filtration accuracy is 5 μ, fine filtration accuracy is 3 μ) circulating filtration. The filter should be easy to disassemble and replace the filter element;

It has the functions of detecting, displaying, and alarming the temperature of the cleaning solution. The alarm temperature can be set and the equipment will automatically stop running until the temperature of the cleaning solution reaches the set range.
