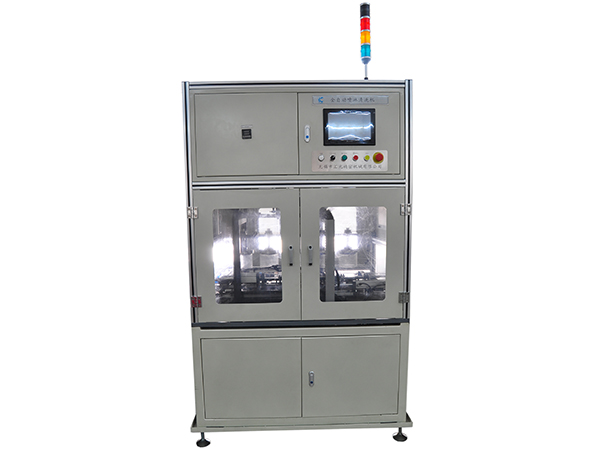

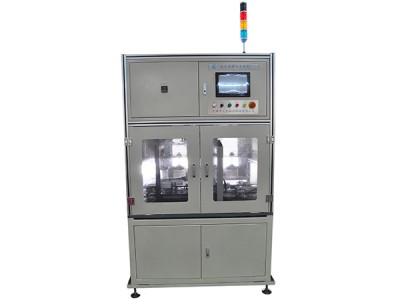

Positioning Spray Cleaning Machine - Introduction
Equipment purpose
Used for cleaning after ball bearing installation and before installing the cage
The device includes functions
a) Cup positioning spray cleaning
b) Cup positioning blow drying
technical indicators
Cleaning efficiency: ≯ 7 seconds/set
The pollution content of a single set of bearings is less than 1.5mg/set
Blow drying: using filtered compressed air to blow dry
The cleaning oil filtration system adopts a stainless steel five core filter, a cleaning detection machine, and two-stage filtration (coarse filtration accuracy is 5 μ, fine filtration accuracy is 3 μ) circulating filtration. The filter should be easy to disassemble and replace the filter element;
Equipped with cleaning solution temperature detection, display, and alarm functions, the alarm temperature can be set and the equipment will automatically stop running after the alarm is triggered until the cleaning solution temperature reaches the set range before it can operate
