Ultrasonic positioning cleaning

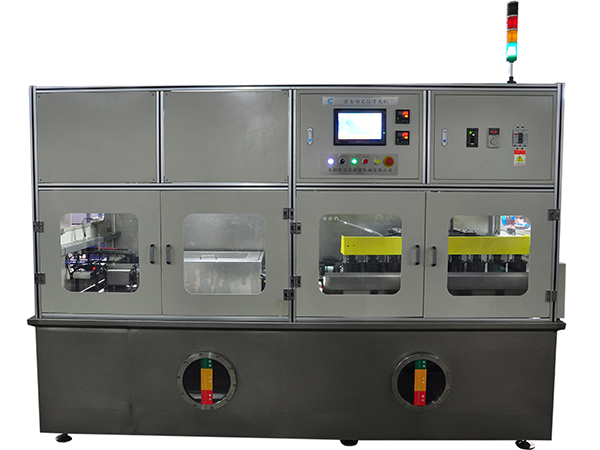

Ultrasonic positioning cleaning machine - Introduction

Equipment purpose

Used for cleaning semi-finished bearings after riveting the ball cage of the ball bearing assembly set

The device includes functions

a) Flat demagnetization

b) Ultrasonic cleaning

c) Cup positioning spray cleaning

d) Positioning and drying

technical indicators

Cleaning efficiency: ≯ 7 seconds/set

Flat demagnetization: residual magnetization ≤ 0.3mT

Ultrasonic power ≥ 500W, frequency: 25KHz, effective length ≮ 1m

The cleaning oil filtration system adopts a stainless steel five core filter, a cleaning detection machine, and two-stage filtration (coarse filtration accuracy is 5 μ, fine filtration accuracy is 3 μ) circulating filtration. The filter should be easy to disassemble and replace the filter element;

Equipped with cleaning solution temperature detection, display, and alarm functions, the alarm temperature can be set and the equipment will automatically stop running after the alarm is triggered until the cleaning solution temperature reaches the set range before it can operate
