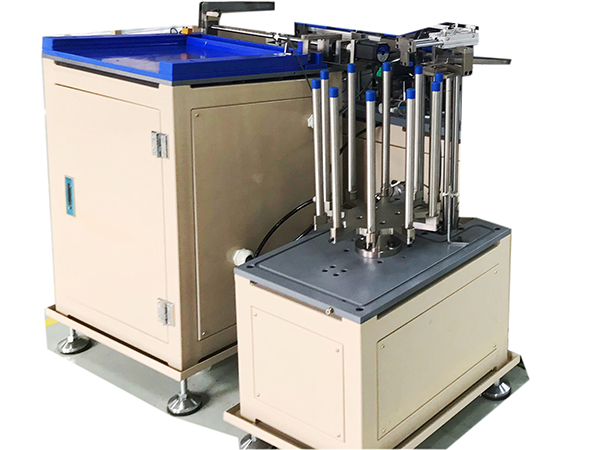

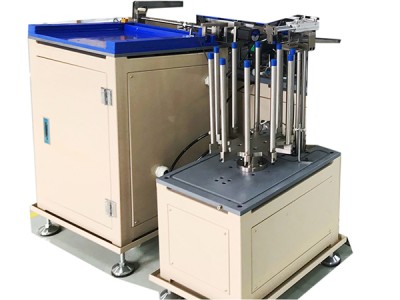

Inner and outer circle feeding

Equipment purpose

Used for storing materials in the inner and outer rings of ball bearings for automatic line equipment feeding,

The device includes functions

a) Outer ring vertical storage material

b) Inner ring material rod storage

c) Automatic feeding of inner and outer rings

technical indicators

The outer ring of the bearing is placed upright on a tilted flat plate, and can be arranged in multiple rows by a needle loader. The material is pushed one by one by a stepper motor

The inner and outer rings of the bearing are threaded together and lifted one by one by a stepper motor to push and feed the material

Avoid collisions between bearings, avoid scratching the surface and channels of bearing rings

When changing the type, the inner ring needs to be replaced with the feeding rod

Store 200-300 units each in the inner and outer circles (taking 6206 as an example)

This device can supply materials for fully automatic equipment and fully automatic assembly lines
