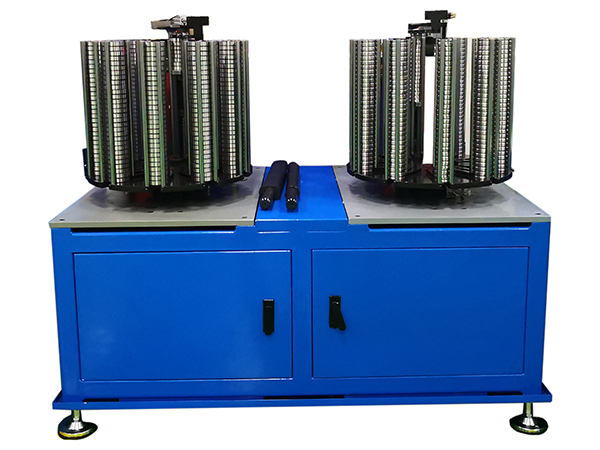

hoist

Equipment purpose

Used for storing materials in the inner and outer rings of ball bearings and supplying them to automatic line equipment

The device includes functions

a) Outer ring material rod storage

b) Inner ring material rod storage

c) The inner and outer rings are automatically lifted and fed one by one

technical indicators

The inner and outer sleeve rings of the bearing are threaded together, and the needle machine is used to lift and push the feeding material one by one by a stepper motor

Avoid collisions between bearings, avoid scratching the surface and channels of bearing rings

When changing the type, the inner ring needs to be replaced with the feeding rod

Store 200-300 units each in the inner and outer circles (taking 6206 as an example)

This device can supply materials for fully automatic equipment and fully automatic assembly lines
