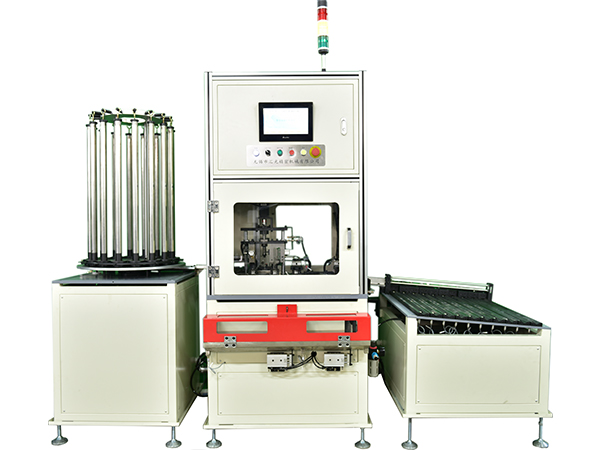

Equipment purpose
Used for dimensional inspection of finished deep groove ball bearings
The device includes functions
a) Inner diameter size inspection
b) Inner and outer circle height detection
technical indicators
The outer diameter size range of machinable bearings is: φ 20~φ 30mm, φ 30~φ 60mm, and φ 60~φ 90mm;
Pen recognition accuracy: 0.1 μ m;
Measurement frame repeatability accuracy: 1 μ m;
Internal hole measurement method: three-point contact probe, assembly machine, one workstation axial displacement axial measurement of 2 sections, automatic calculation of inner diameter size, taper, etc;
Work efficiency: 4.0-6.0 seconds/set
