Equipment purpose

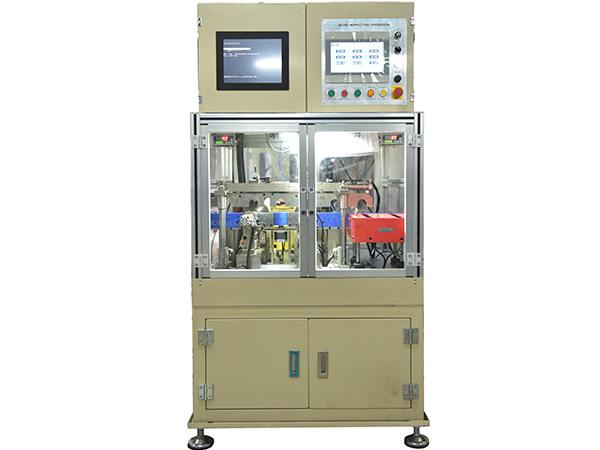

Used for vibration detection of deep groove ball bearings, assembly machines, both speed and acceleration types can be detected
The device includes functions
a) A-side vibration detection
b) Turn over
c) B-side vibration detection
technical indicators
The range of outer diameter dimensions for machinable bearings is: φ 20 to φ 40mm, φ 30 to φ 60mm, and φ 60 to φ 90mm;
Detection methods: acceleration type vibration detection, velocity type vibration detection, acceleration type and velocity type vibration detection. Vibration detection can be achieved by replacing the measuring frame, sensors, and analysis software among the three;
Sensors: ① Speed type sensor, detecting low frequency, medium frequency, high frequency, peak value, and internal defects (inner ring damage, outer ring damage, steel ball damage, few steel balls, garbage noise, etc.) of bearings. ② Acceleration type sensor detects decibel values, peak values, and internal defects (inner ring damage, outer ring damage, steel ball damage, few steel balls, garbage noise, etc.) of bearings;
Classification of testing data: classify qualified and unqualified products according to production requirements and conduct statistical analysis; According to quality management requirements, classify and statistically analyze different abnormal sounds.
Management function: a powerful parameter learning function implemented to adapt to enterprise standards; Storage, export, and analysis of measurement data to meet the personalized management requirements of enterprises; Networking enables remote management and services.
Work efficiency: 4.0-8.0 seconds/set
