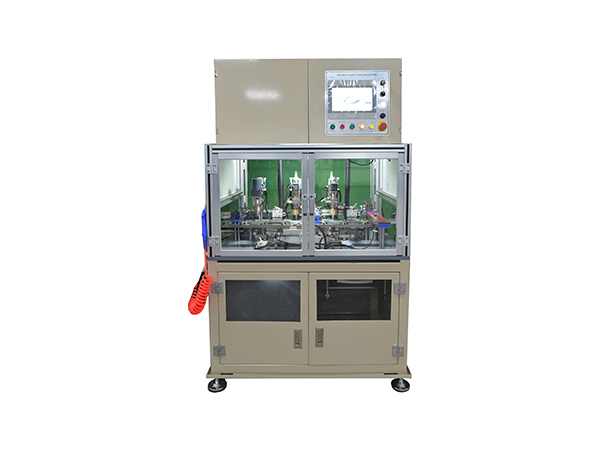

greasing machine

Equipment purpose

Mainly used for grease injection of ball bearings, it can be injected on one side or both sides, and can be injected on needle machines, nylon retainers, and iron retainers for bearings

The device includes functions

a) Bearing feeding (open type bearings)

b) Positioning

c) Weighing inspection

d) A-side grease injection

e) Turn over

f) B-side grease injection

g) Weighing inspection

technical indicators

The range of outer diameter dimensions for machinable bearings is from 26 to 62mm, and from 62 to 90mm; φ90 ～φ120mm

work efficiency

Single sided grease injection: diameter 26 to 62mm, 2.2 seconds per set; φ62 ～φ90mm ， 3.0 seconds per set; φ90 ～φ120mm ， 4.0 seconds per set;

Double sided grease injection: Diameter 26 to 62mm, 3.0 seconds per set; φ62 ～φ90mm ， 4.0 seconds per set; φ90 ～φ120mm ， 5.0 seconds per set;
