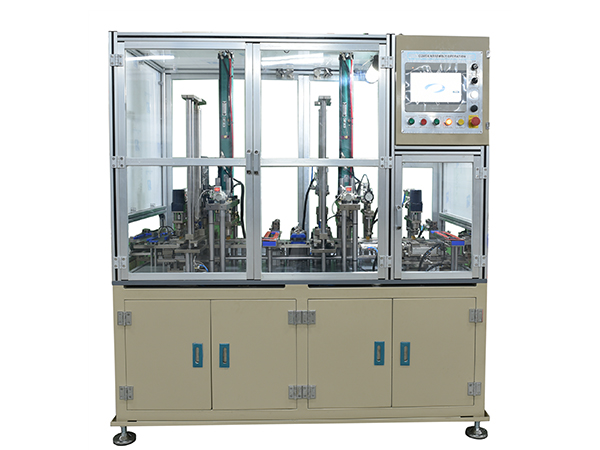

capping machine

Equipment purpose

Mainly used for ball bearing capping, needle setting machine, rubber sealing cover and iron sealing cover. Bearings can all achieve capping

The device includes functions

a) Bearing feeding (open type bearings)

b) Positioning

c) A-side cover (pressed rubber cover)

d) A-side cover (iron cover)

e) A-side cover height inspection

f) Turn over

g) B-side cover (pressed rubber cover)

h) B-side cover (iron cover)

i) B-side cover height inspection

j) Uniform fat

technical indicators

The range of outer diameter dimensions for machinable bearings is from 26 to 62mm, and from 62 to 90mm; φ90 ～φ120mm

work efficiency

Single sided grease injection: diameter 26 to 62mm, 2.2 seconds per set; φ62 ～φ90mm ， 3.0 seconds per set; φ90 ～φ120mm， 4.5 seconds per set;

Double sided grease injection: Diameter 26 to 62mm, 3.0 seconds per set; φ62 ～φ90mm ， 4.0 seconds per set; φ90 ～φ120mm， 5.5 seconds per set;
