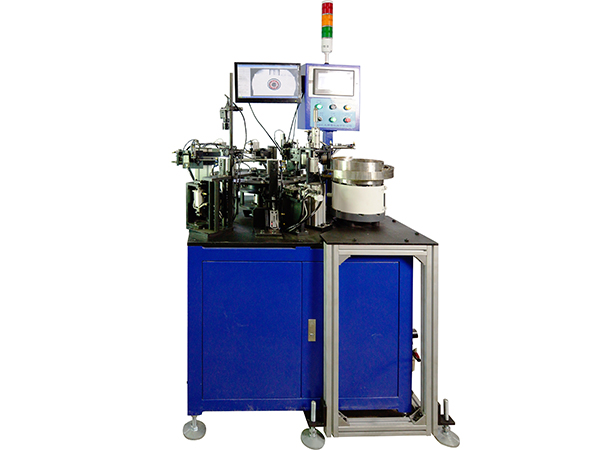

Assembly of Micro Retainers

Equipment purpose

Fully automatic cage assembly for special micro ball bearings, assembly machine suitable for crown cage and nylon cage

The device includes functions

a) Bearing feeding (bearings with steel balls installed)

b) Split ball (evenly distribute steel balls)

c) Imaging examination (checking the scoring results)

d) Install into the holder

e) Retaining frame riveting

technical indicators

The range of outer diameter dimensions for machinable bearings is from 5 to 20mm

Steel ball diameter: ≥ φ 0.8mm

Number of steel balls:<13

Work efficiency: 4.0 seconds per set
