Assembly of retaining frame

Equipment purpose

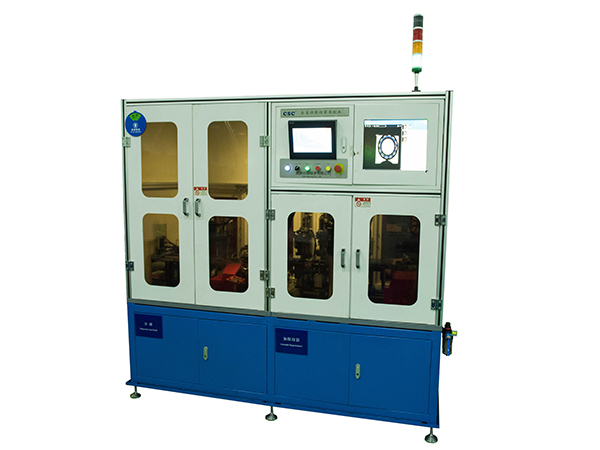

The assembly machine is mainly used for fully automatic assembly of special wave shaped retaining frames

The device includes functions

a) Bearing feeding (bearings with steel balls installed)

b) Collecting balls (gathering balls, returning balls)

c) Split ball (evenly distribute steel balls)

d) Less ball inspection

e) Install them separately into the upper and lower holders

f) Maintain the alignment of the holder

g) Inspection before riveting

h) Retaining frame riveting

i) Inspection after riveting

technical indicators

The range of outer diameter dimensions for machinable bearings is from 26 to 62mm, and from 62 to 90mm;

Work efficiency: from 26 to 62mm, 3.0 seconds per set; φ62 ～φ90mm ， 4.0 seconds per set
