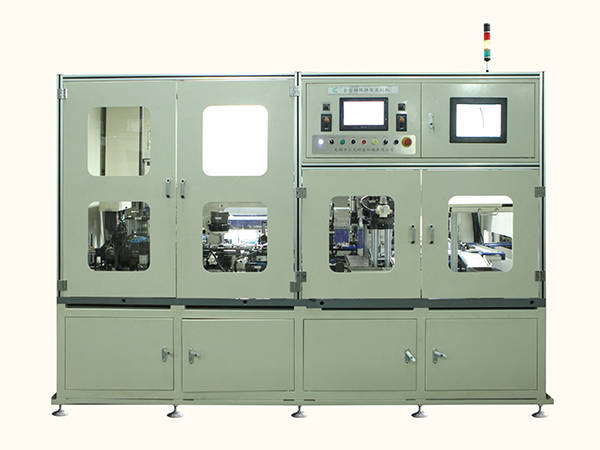

Holder assembly machine (bottom ball)

Equipment purpose

Assembly machine for fully automatic assembly of iron wave shaped retaining frames and nylon retaining frames

NSK original model optimization

1. Motor rotation ball return

2. The dividing needle is used from bottom to top, gently dividing the ball with minimal damage

3. Easy and effortless assembly of small clearance bearings

4. Universal for both iron and nylon retaining frames

The device includes functions

a) Bearing feeding (bearings with steel balls installed)

b) Collecting balls (gathering balls, returning balls)

c) Split ball (evenly distribute steel balls)

d) Less ball inspection

e) Install onto the holder

f) There is no inspection available on the platform

g) Install the lower holder

h) Maintain the alignment of the holder

i) Inspection before riveting

j) Retaining frame riveting

k) Contact inspection of rivets after riveting

technical indicators

The range of outer diameter dimensions for machinable bearings is from 26 to 62mm, and from 62 to 90mm; φ90 ～φ120mm

Work efficiency: 26 to 62mm, 3.5 seconds per set; φ62 ～φ90mm ， 5.5 seconds per set; φ90 ～φ120mm ， 6.5 seconds per set
