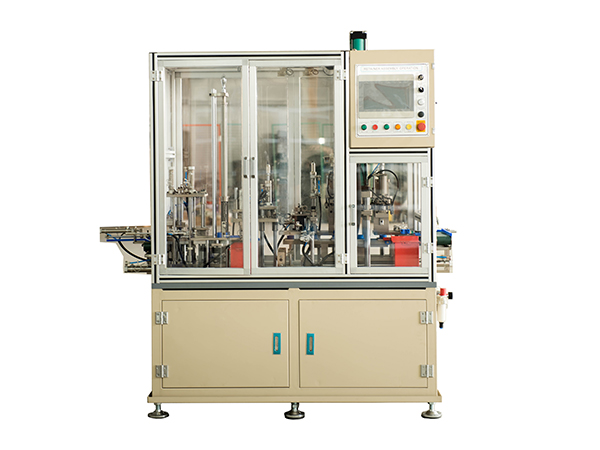

Cage assembly machine (nylon iron protection integrated machine)

Equipment purpose

Mainly used for fully automatic assembly of special wave shaped retaining frames and nylon retaining frames, the assembly machine equipment is equipped with both nickel and iron retaining and pressure retaining departments

The device includes functions

a) Bearing feeding (bearings with steel balls installed)

b) Collecting balls (gathering balls, returning balls)

c) Split ball (evenly distribute steel balls)

d) Less ball inspection

e) Insert and press in the nylon holder

f) Install them separately into the upper and lower holders

g) Maintain the alignment of the holder

h) Nylon cage height inspection

i) Inspection before riveting

j) Retaining frame riveting

k) Inspection after riveting

technical indicators

The range of outer diameter dimensions for machinable bearings is from 26 to 62mm, and from 62 to 90mm;

Work efficiency: from 26 to 62mm, 3.0 seconds per set; φ62 ～φ90mm ， 4.0 seconds per set
