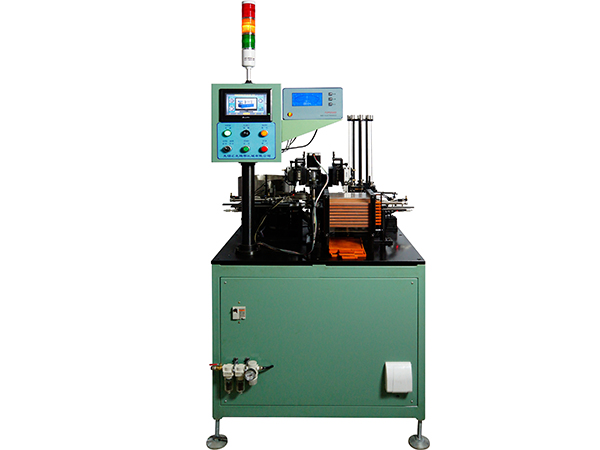

Equipment purpose
The fully automatic inner and outer groove diameter measurement of the special micro ball bearing is selected according to the parameters of the steel ball, and the needle machine is used. Finally, the paired inner and outer rings are sent to the corresponding steel ball trays, and the ball loading is completed manually.
More suitable for loose ball bearings with a ball angle less than 180 degrees
The device includes functions
a) Inner and outer ring material storage
b) Automatic feeding of inner and outer rings
c) Measurement of inner and outer groove diameters
d) Automatic matching of inner and outer rings based on steel ball parameters
e) Selected inner and outer rings are stored in trays
technical indicators
The range of outer diameter dimensions for machinable bearings is from 10mm to 26mm
Pairing method: 16 (outer ring) * 16 (inner ring) * 10 (steel ball)
Measurement system recognition accuracy: 0.1 μ m
Measurement frame comprehensive accuracy (measurement accuracy): 1 μ m
Work efficiency: 3.0 seconds per set
