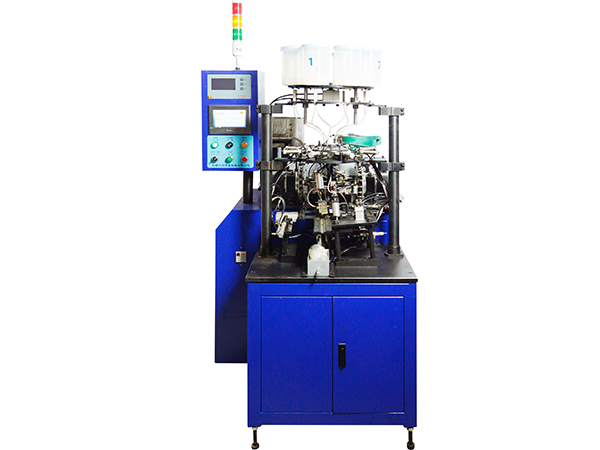

Equipment purpose
Fully automatic inner and outer groove diameter measurement of miniature ball bearings, needle installation machine, selection based on steel ball parameters, and completion of ball installation
The device includes functions
a) Inner and outer ring material storage
b) Automatic feeding of inner and outer rings
c) Measurement of inner and outer groove diameters
d) After measuring the size, the inner and outer ring storage areas (turntable type, rotating storage area)
e) Steel ball storage, automatic ball matching
f) Automatic pairing of inner and outer rings and steel balls
g) Ball installation and fitting
technical indicators
The outer diameter size range of machinable bearings is from φ 14 to φ 26mm
Pairing method: 16 (outer ring) * 16 (inner ring) * 10 (steel ball)
Measurement system recognition accuracy: 0.1 μ m
Measurement frame comprehensive accuracy (measurement accuracy): 1 μ m
Work efficiency: 3.0 seconds per set
