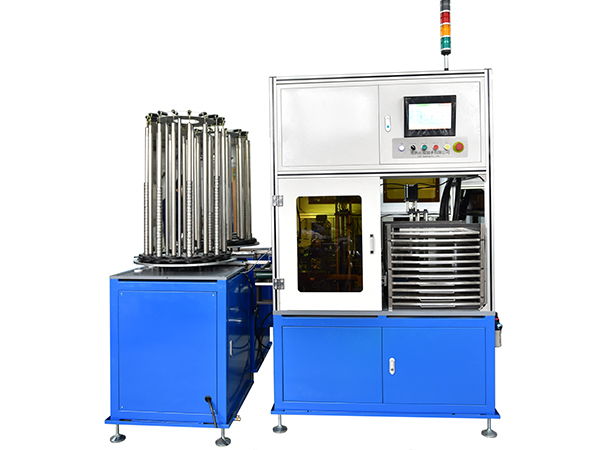

Bearing groove diameter measurement optional machine

Equipment purpose

The fully automatic inner and outer groove diameter measurement and assembly machine for small and medium-sized ball bearings selects and matches according to the parameters of the steel balls. Finally, the paired inner and outer rings are sent to the corresponding steel ball trays, and the ball loading is completed manually.

More suitable for loose ball bearings with a ball angle less than 180 degrees

More suitable for the assembly of ball bearings with multiple varieties and few batches, automatic selection avoids manual errors, and ball installation is completed manually

The device includes functions

a) Inner and outer ring material storage

b) Automatic feeding of inner and outer rings

c) Measurement of inner and outer groove diameters

d) Automatic matching of inner and outer rings based on steel ball parameters

e) Selected inner and outer rings are stored in trays

technical indicators

The range of outer diameter dimensions for machinable bearings is from 26 to 62 millimeters; φ62 ～φ90mm ； φ90 ～φ120mm

Pairing method: 10 (outer ring) * 10 (inner ring) * 10 (steel ball)

Measurement system recognition accuracy: 0.1 μ m

Measurement frame comprehensive accuracy (measurement accuracy): 1 μ m

Work efficiency: 3.0 seconds per set; 4.0 seconds per set; 5.0 seconds per set;
