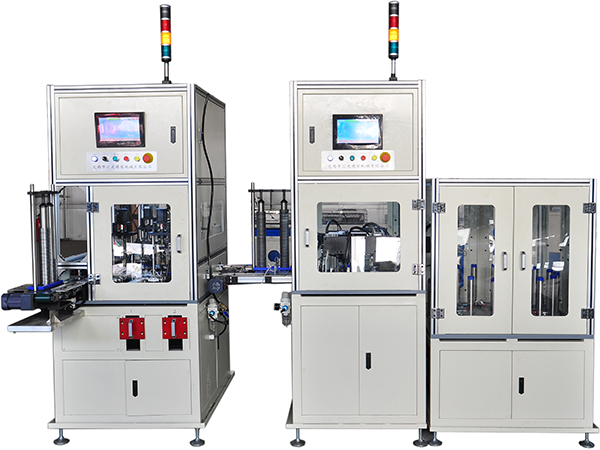

Assembly and Testing Line for Flat Thrust Bearings - Introduction
Equipment purpose
Assembly machine for fully automatic assembly and testing of planar thrust bearings
Assembly line process
Material rod+belt conveyor feeding (workpiece channel facing up) → inner diameter detection → inner diameter defective product discharge → outer diameter detection → outer diameter defective product discharge → parallelism difference detection → parallelism difference defective product discharge → flipping the upper piece and not flipping the lower piece → installing the holder component → placing the upper piece → flexibility detection → flexibility defective discharge → discharging the entire line (material rod rotary table type)
technical indicators
Whole line rhythm: 7-8 s/p (under full load operation)
including equipment
serial number | Device Name | Number of devices | remark |
1 | Fully automatic thrust ball groove parallelism detection machine | 1 | dual-channel |
2 | Fully automatic thrust ball assembly machine | 1 | rotary dial |
3 | Fully automatic whole train machine | 1 | Material rod rotary table type |
