1、 Process flow:
2、 Process flow: Pre process feeding → Single piece demagnetization → Positioning forced rotation spray cleaning → Drying → Product delivery.

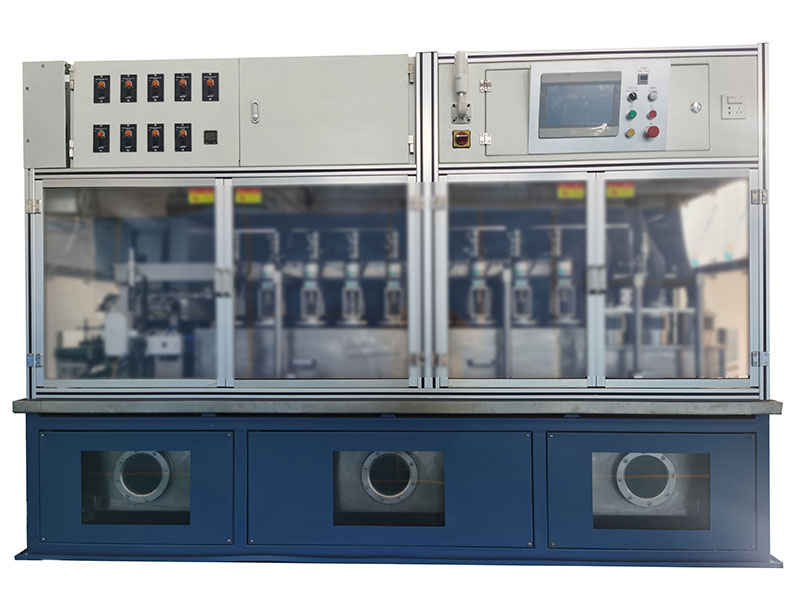

3、 Spray cleaning: Six stations perform cup type forced positioning rotary cleaning. The first three stations spray from bottom to top, and the bearings rotate counterclockwise. The last three stations spray from top to bottom, and the bearings rotate clockwise;
4、 Drying method: Compressed air filtered by an air pump is used to dry the bearings through pipelines and blowing pipes
5、 Air filtration method; Add an air filtration mechanism to the air intake, using coarse and high-efficiency air filters for secondary filtration.
6、 The cleaning oil filtration system adopts a stainless steel five core filter with two-stage filtration (coarse filtration accuracy of 1 μ, fine filtration accuracy of 0.22 μ) and circulating filtration. The filter should be easy to disassemble and replace the filter element.
7、 The equipment also reserves interfaces for water cooling, oil cooling, and centralized filtration;
8、 The cleaning machine (including the electronic control system) adopts a fully sealed structure, and the exterior is made of flame-retardant materials, equipped with an oil mist recovery interface device.
9、 It has the functions of detecting, displaying, and alarming the temperature of the cleaning solution. The alarm temperature can be set and the equipment will automatically stop running until the temperature of the cleaning solution drops within the set range.
10、 Pushing method: The feeding claw is installed on the moving device to ensure that there is no need to replace or adjust the fixture within a certain range, no material accumulation, and no contact between products. Spray cleaning uses tooling molds, and the upper and lower mold heads of each set of molds do not need to be adjusted or replaced within a certain range, and are not limited by the model within the design scope.
11、 Equipped with high oil temperature alarm and low oil level alarm, using sound and light alarm;
