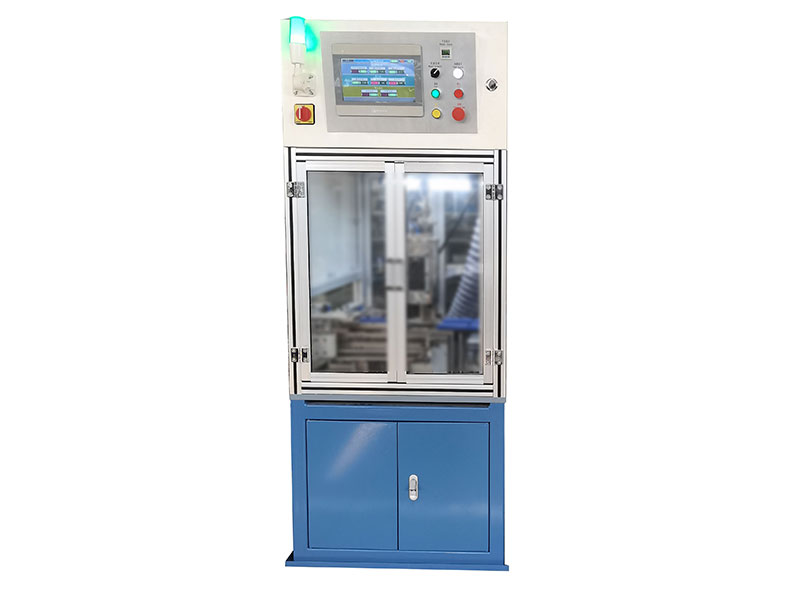

Atomization rust prevention machine for angular contact bearings

1、 Process flow: material supply in the previous process → manipulator transport to spray station → atomization rust prevention → whole product line

2、 Spray station: cup type single spray. When spray, the bearing is in an independent sealed spray chamber, and spray is carried out up and down at the same time;

3、 There is an oil pollution recovery device below the atomization chamber. After the atomization is completed and the oil mist recovery is finished, the sealed atomization chamber is opened;

4、 Anti rust oil atomization: using a high atomization nozzle to atomize anti rust oil, suitable for high viscosity anti rust oil.

5、 Atomization amount: The atomization amount and atomization time can be adjusted according to product requirements.

6、 Rust prevention oil recovery: An oil return device is installed below the atomization chamber to recover and filter rust prevention oil, which flows back to the oil tank.

7、 Oil mist recovery: equipped with oil mist separation and filtration device, no need to install oil fume exhaust pipeline.

8、 Discharge line: The atomized products are discharged in a whole line.

9、 No tooling design, no need to replace tooling within a certain range.
