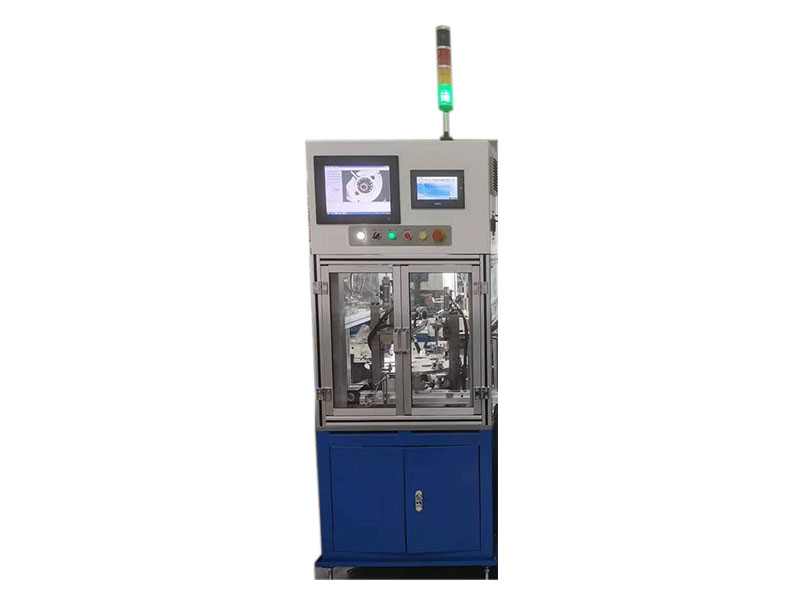

Swing rod bearing cage assembly machine

Swing rod bearing cage assembly machine - Introduction

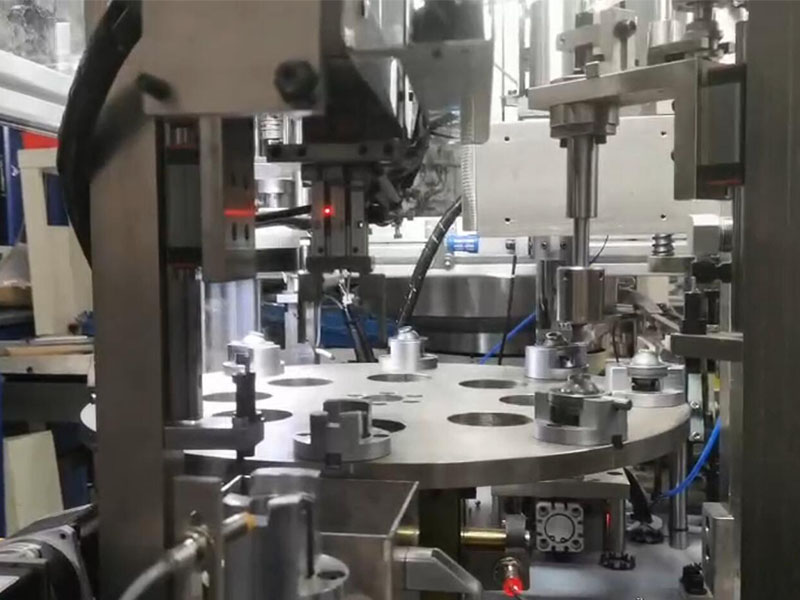

Equipment process flow:

Visual inspection of ball shortage → ball collection → ball distribution → holder pressing → holder pressing height detection → qualified product discharge

Parameter indicators:

(1) The detection rate of defective products in the double cage and height of the cage is 100%;

(2) 100% identification of defective products with fewer balls;

Function description:

(1) Less ball detection: Visual image detection is used to detect whether there are fewer balls, and the products with fewer balls are removed in the subsequent NG process;

(2) Ball collection and distribution: Customized molds are used to gather steel balls together and then separate them evenly;

(3) Riveting: Customized riveting molds are used to rivet the retainer, and the cylinder is pressed directly to press the retainer in;

(4) Height detection of retaining frame: Linear resistance is used to detect the riveting height of the retaining frame, with a recognition accuracy of 0.02mm;
